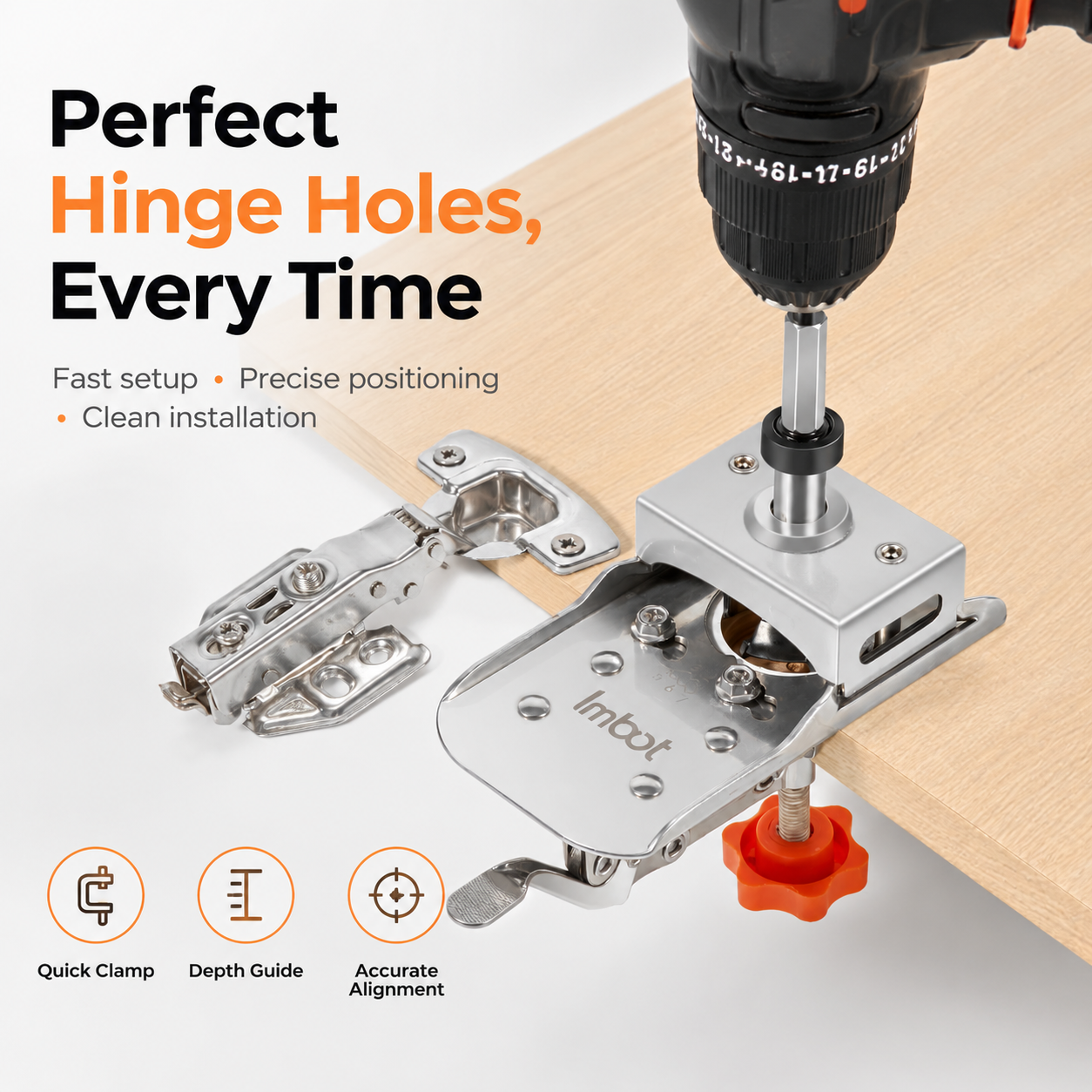

🔨 Concealed Hinge Jig Kit – Perfect Hinge Holes, Every Time

🔨 Concealed Hinge Jig Kit – Perfect Hinge Holes, Every Time

Fast setup, precise positioning, clean installation. Quick clamp, depth guide, and accurate alignment — built for cabinet doors, wardrobe doors, and furniture repairs. Perfect hinge fit, every time.

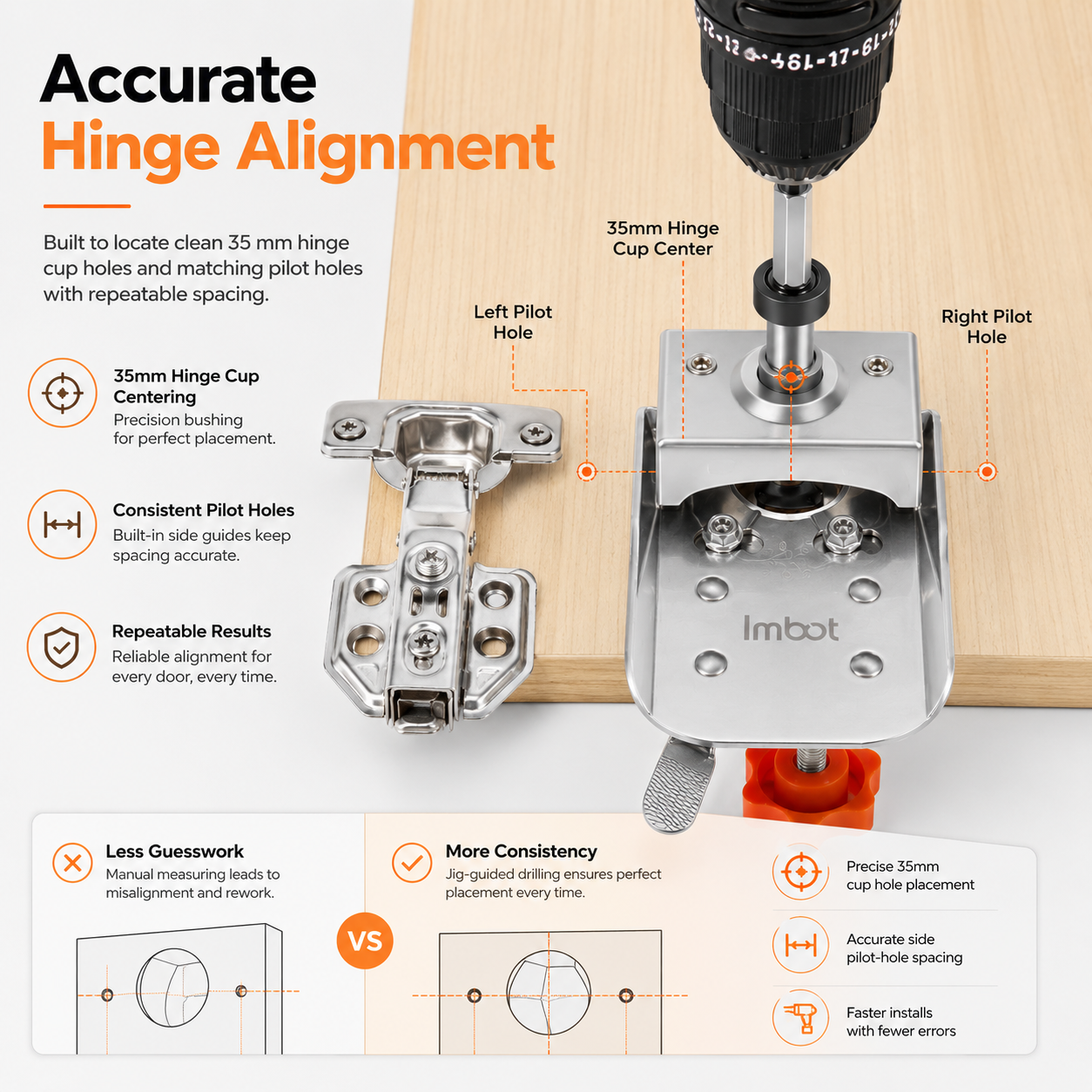

😫 Tired of Misaligned Hinges and Rework? – Accurate Hinge Alignment

Jig-guided drilling: Consistent alignment, perfect placement every time.
Manual measuring: Misalignment and rework.
35mm hinge cup centering with precision bushing for perfect placement. Built-in side guides keep pilot hole spacing accurate. Reliable alignment for every door, every time. Faster installs with fewer errors.

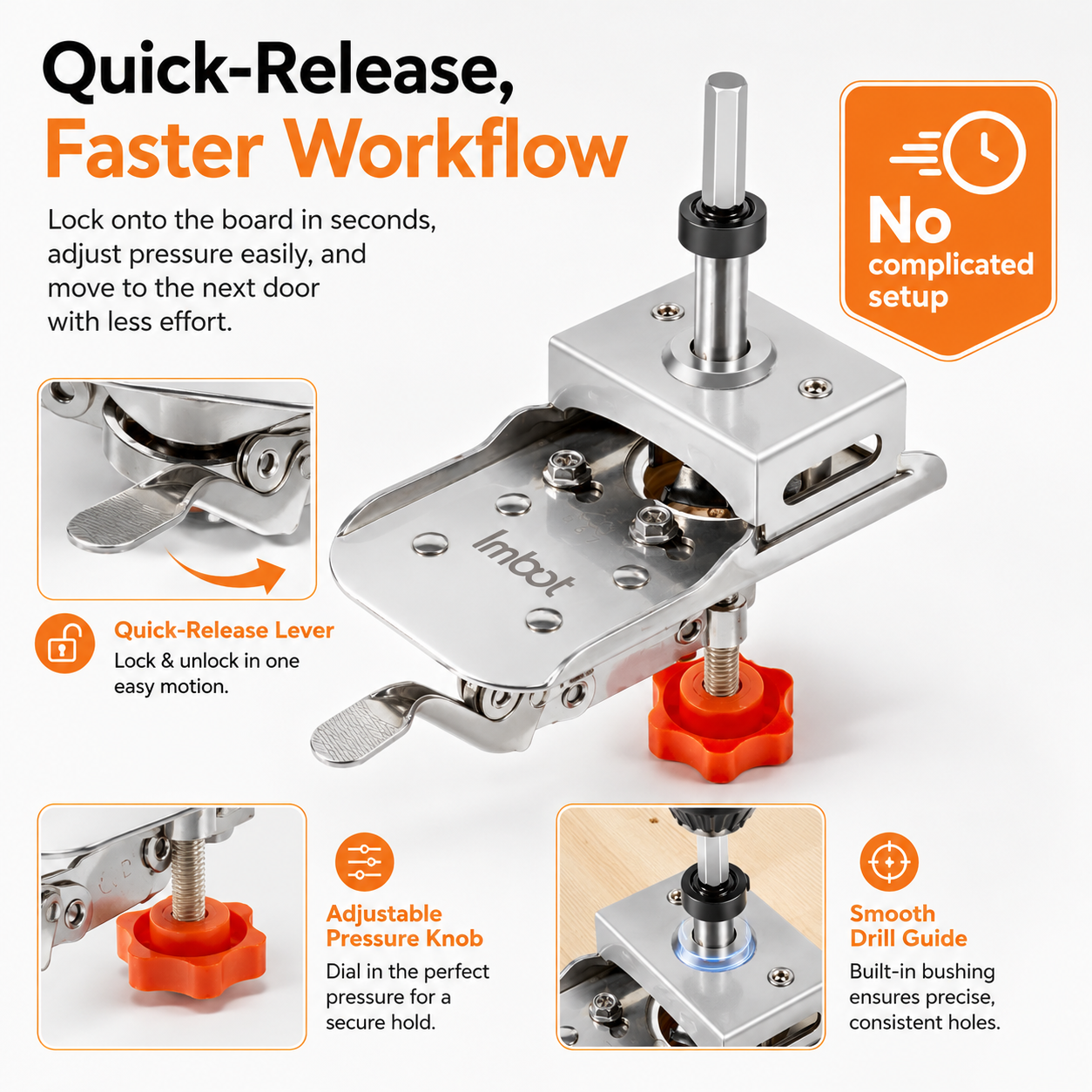

🔒 Quick-Release, Faster Workflow – Lock On in Seconds

Quick-release lever locks and unlocks in one easy motion. Adjustable pressure knob dials in the perfect hold. Smooth drill guide with built-in bushing ensures precise, consistent holes. No complicated setup — clamp, drill, move to the next door with less effort.

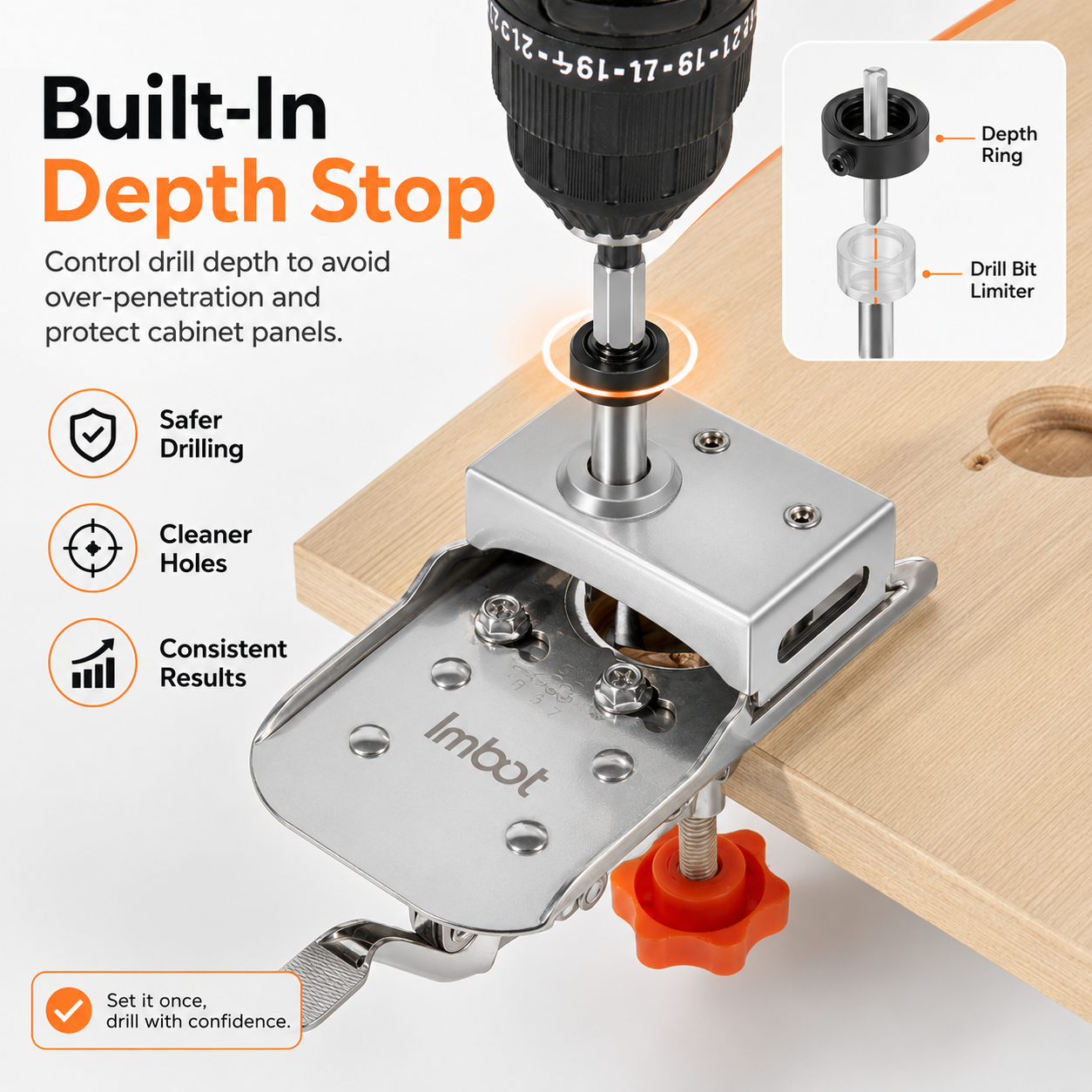

📏 Built-In Depth Stop – Control Drill Depth, Avoid Over-Penetration

Depth ring and drill bit limiter control drill depth to avoid over-penetration and protect cabinet panels. Safer drilling, cleaner holes, consistent results. Set it once, drill with confidence.

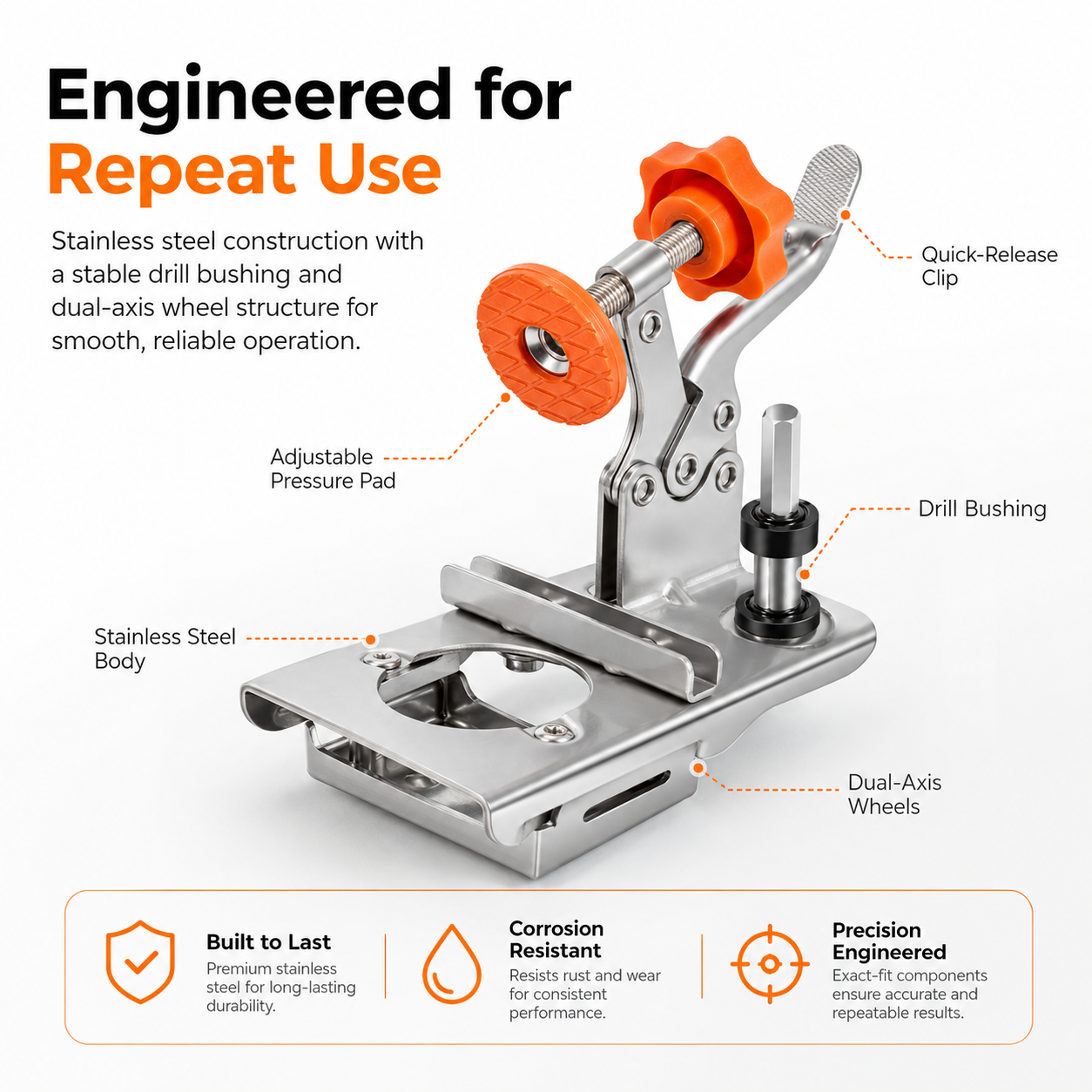

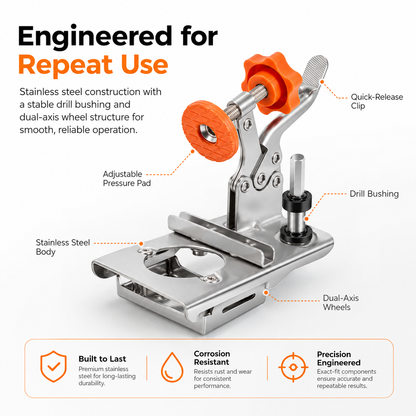

🔩 Engineered for Repeat Use – Stainless Steel Construction

📷 对应图片： ChatGPT Image Jul 14, 2026, 09_14_49 PM (7).png

Premium stainless steel body for long-lasting durability. Resists rust and wear for consistent performance. Stable drill bushing and dual-axis wheel structure for smooth, reliable operation. Exact-fit components ensure accurate and repeatable results.

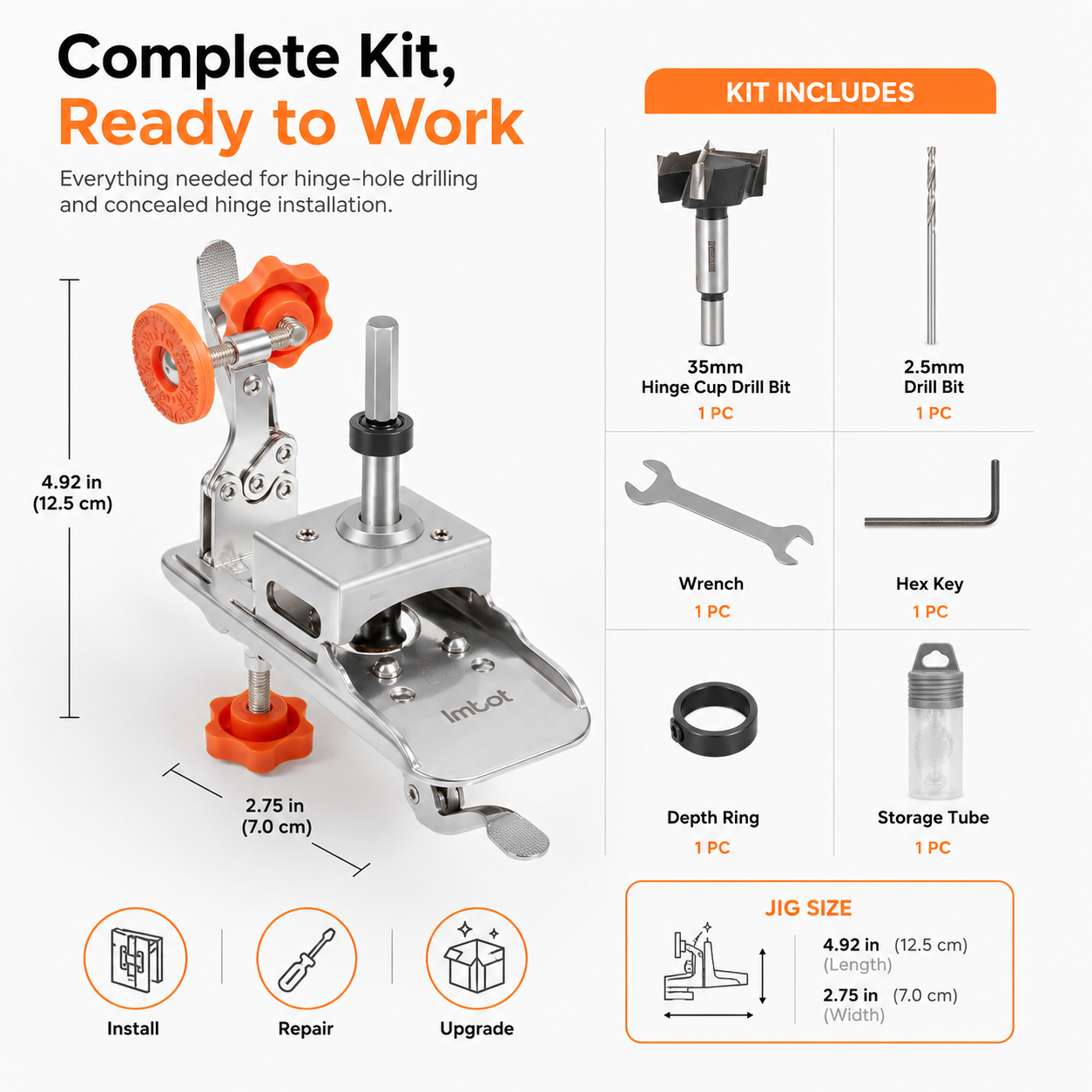

📦 Complete Kit, Ready to Work + Fits Multiple Panel Thicknesses

Kit includes: 35mm hinge cup drill bit, 2.5mm drill bit, wrench, hex key, depth ring, and storage tube.
Jig Size: 12.5cm (4.92in) length × 7.0cm (2.75in) width.

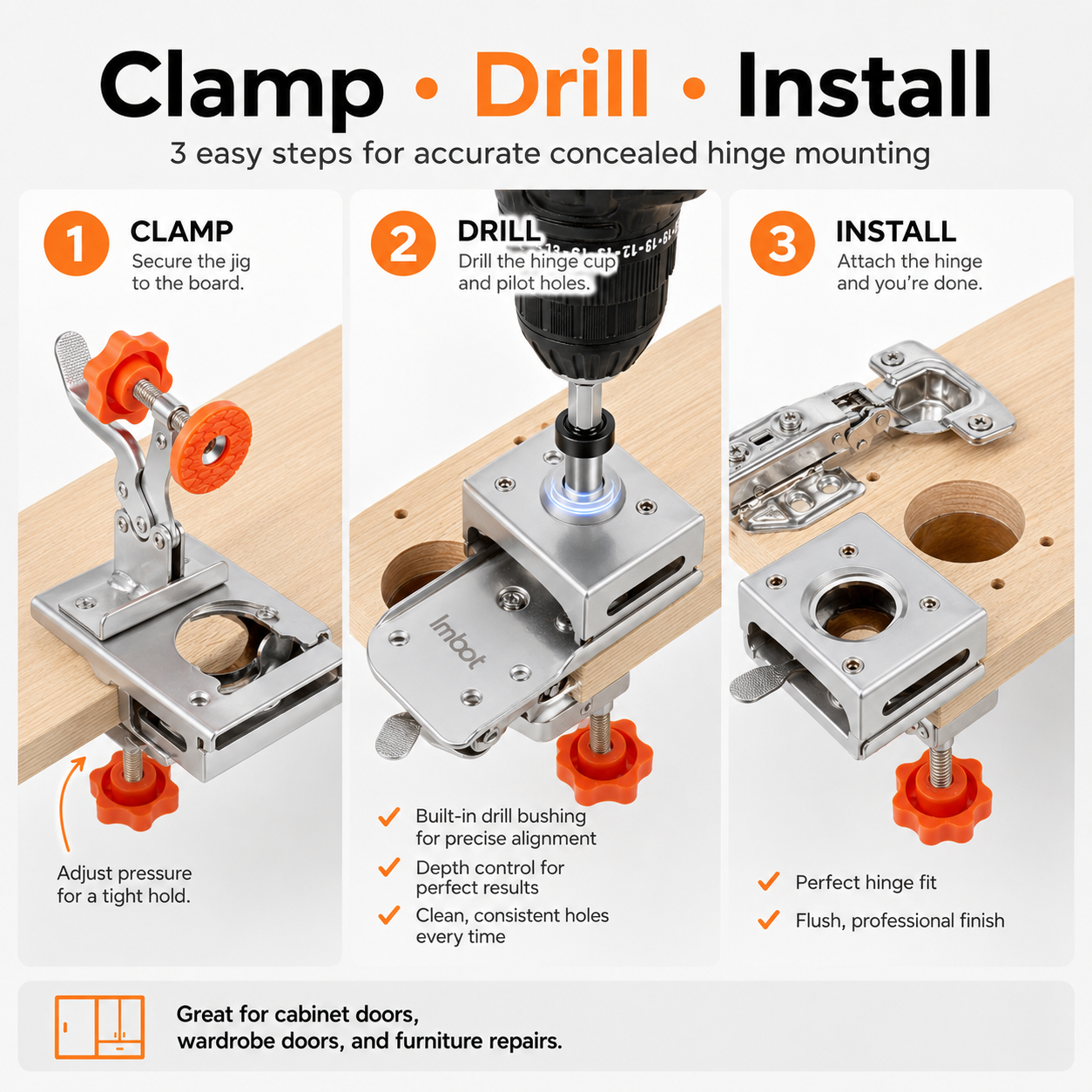

Clamp & Drill – 3 Easy Steps: Clamp the jig to the board, drill the hinge cup and pilot holes, install the hinge.

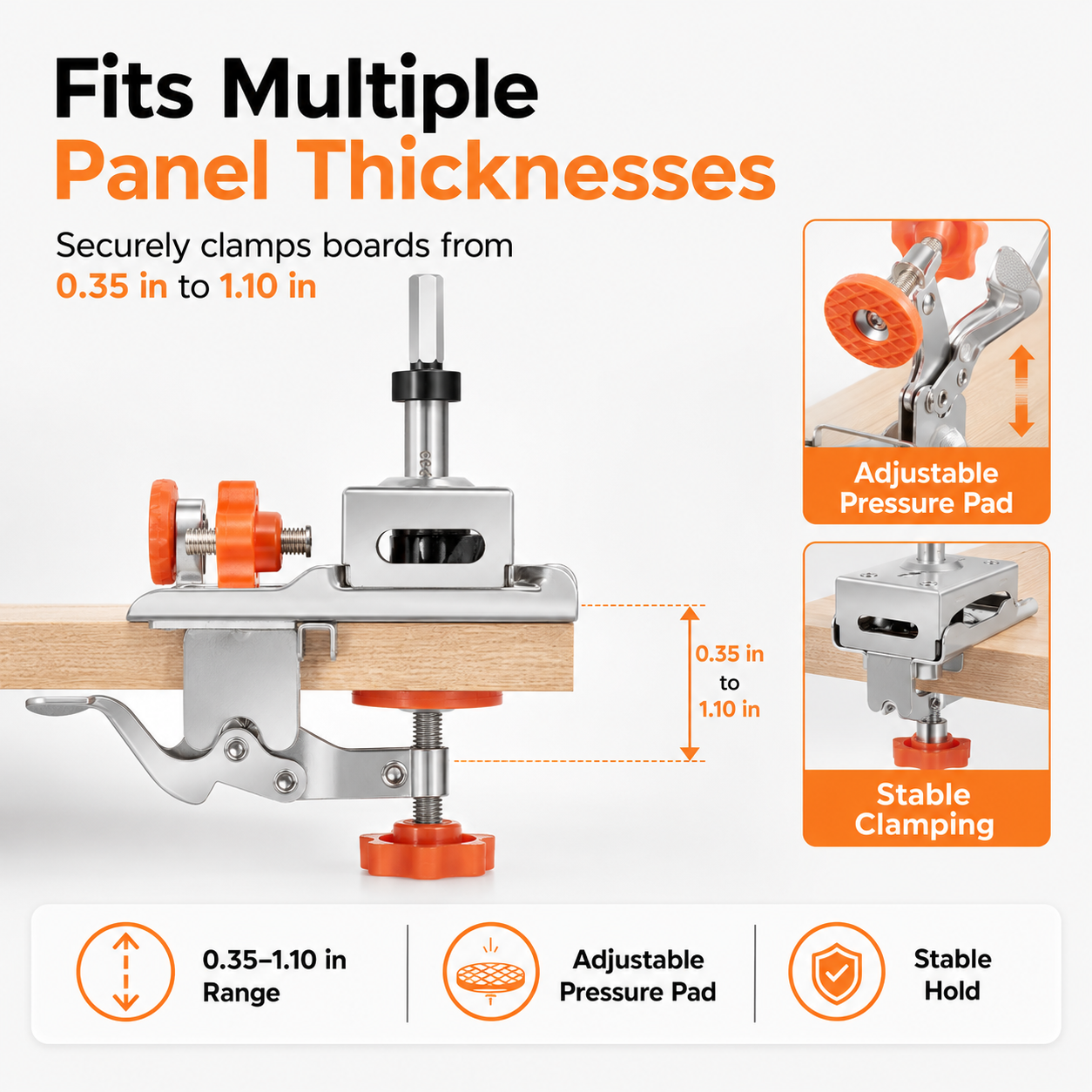

Fits panels from 0.35in to 1.10in with adjustable pressure pad for stable clamping.
